Description
5.3Kwh 51.2V LITHIUM ION WECO SOLAR BATTERY 5K3-XP with dual voltage for high voltage and low voltage system is an ideal backup for domestic and industrial setup. The high voltage battery port range is 80/700V to 750V while the low port voltage range is 48.5V to 58.4V. The high voltage battery port is ideal for inverters with a high input battery voltage range which include Deye 20kw 3 phase high voltage inverter, Solis 20Kw 3 phase high voltage inverter, Deye 30kw, Deye 50Kw inverter etc.
FEATURES
- Dual voltage
- Expandable module: Upto 79.4Kwh for both low and high voltage models
- 7000 cycles with more than 16 years of service life.
- Wall mounted
- Floor mounted
- Integrated WIFI and Bluetooth
- Web portal assistance
- Cluster modules for the high voltage include 2, 3, 4, 5, 5+5+5
- For cluster module 2 for high voltage range application i.e 2 batteries connected in series: the voltage range is 95-116VDC
- For cluster module 3 for high voltage range application i.e 3 batteries connected in series: the voltage range is 140-175VDC
- For cluster module 4 for high voltage range application i.e 4 batteries connected in series: the voltage range is 190-230VDC
- For cluster module 5 for high voltage range application i.e 5 batteries connected in series: the voltage range is 235-290VDC
- For cluster module 5+5+5 for high voltage range application i.e 15 batteries connected in series in with 3 clusters : the voltage range is 752-928VDC

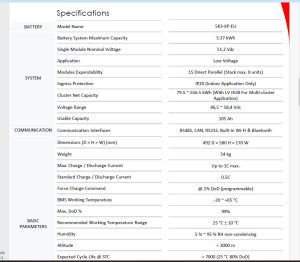

Weco 5K3-XP single battery module features

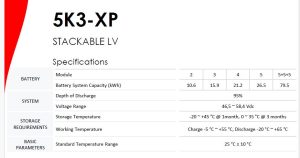

Weco 5K3-XP stackable low voltage battery module features

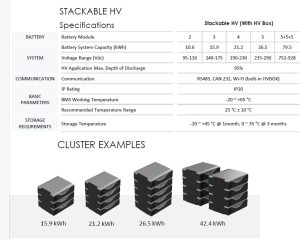

Weco 5K3-XP stackable high voltage battery module features
