Description

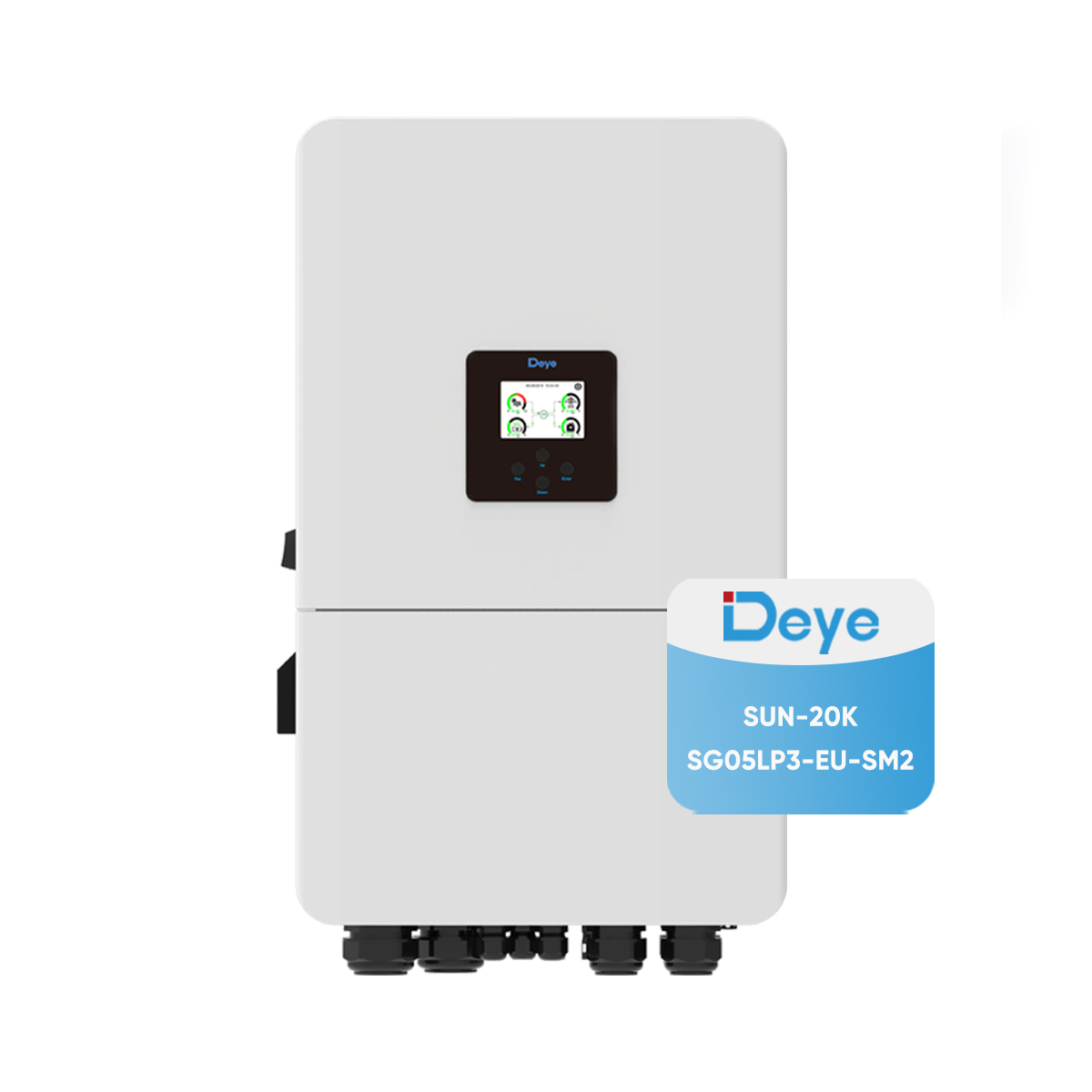

DEYE 20KW 48V 3 PHASE 2 MPPT HYBRID INVERTER SUN-20K-SG05LP3-EU-SM2 is a versatile low voltage 3 phase inverter with application in both domestic and light commercial setup.
Key features include:
- Brand Name :Deye
- Model ID :SUN-20K-SG05LP3-EU-SM2
- Battery Type :Lithium-ion
- MPPT Voltage Range（V） :160-650
- Grid Connection Form :3L+N+PE
- Communication Interface :RS485/RS232/CAN
- Cabinet size（W*H*D） :456*750*268.5
- Weight[kg] :51.9
- Type Of Cooling :Intelligent Air Cooling
- Battery Voltage :40-60
- Max. charging/discharging current of 350A
- Support storing energy from diesel generator
- Max. 10 pcs parallel for on-grid and off-grid
- operation; Support multiple batteries parallel
- AC couple to retrofit existing solar system
- 6 time periods for battery charging/discharging
- 48V low voltage battery, transformer isolation design
- 100% unbalanced output, each phase; Max.

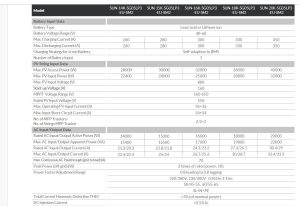

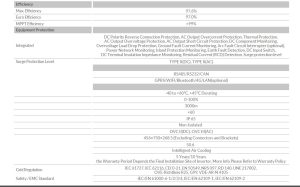

- TECHNICAL PARAMETERS
-
Basic System Architecture
The following illustration shows basic application of this inverter.
It also includes following devices to have a Complete running system.
– Generator or Utility
– PV modules
Please consult Multline Autosystems ltd for other possible system architectures depending on your requirements.
This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as refrigerator and air conditioner.
Parts List and Installation:
NOTE: This Hybrid inverter is designed for outdoor use(IP65), Please make sure the installation site meets below conditions:
· Not in direct sunlight
· Not in areas where highly flammable materials are stored.
· Not in potential explosive areas.
· Not in the cool air directly.
· Not near the television Antenna or antenna cable.
· Not higher than altitude of about 3000 meters above sea level.
· Not in environment of precipitation or humidity(>95%)
- Deye 20Kw 48V 3 phase inverter datasheet
