Description

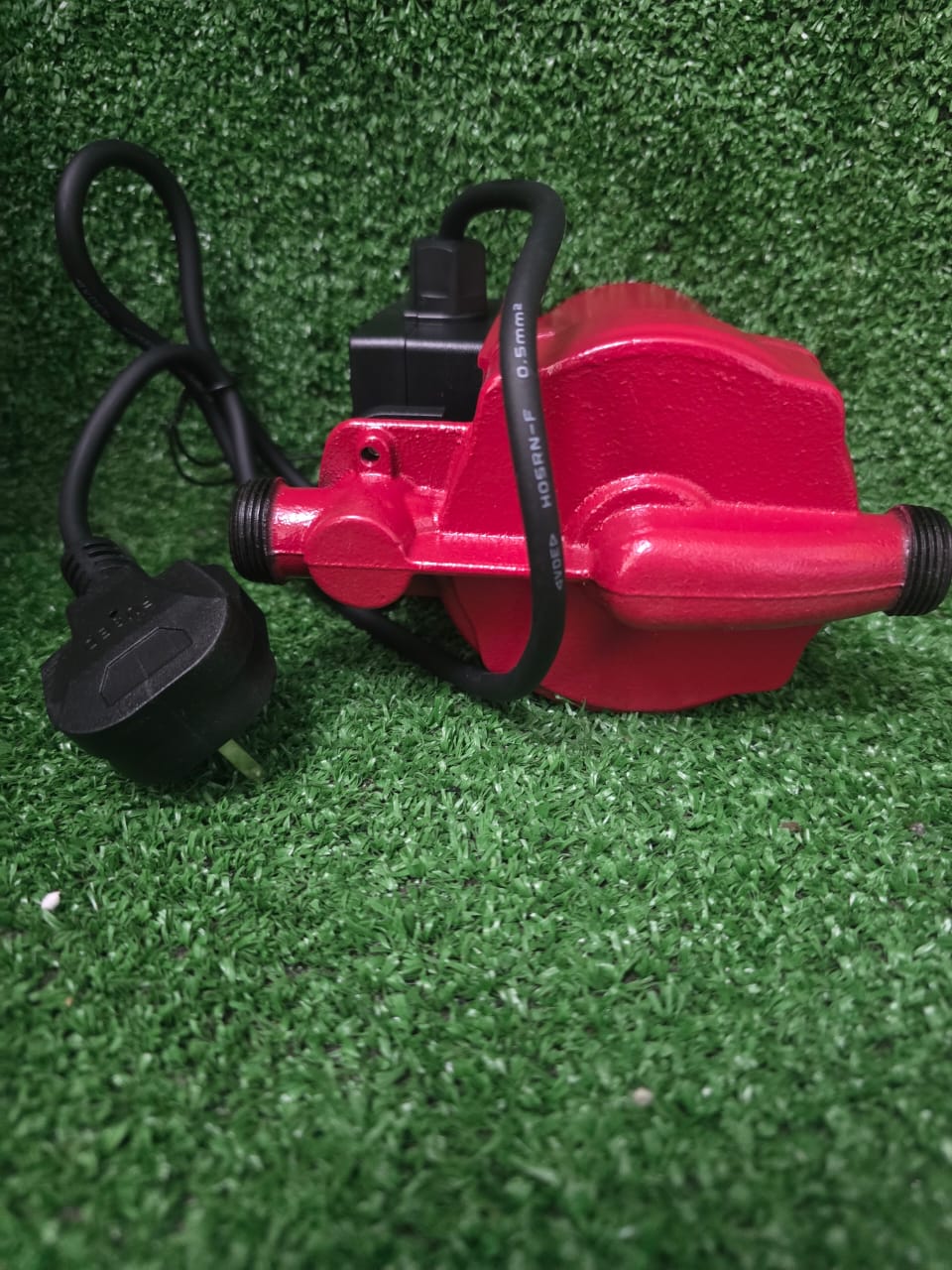

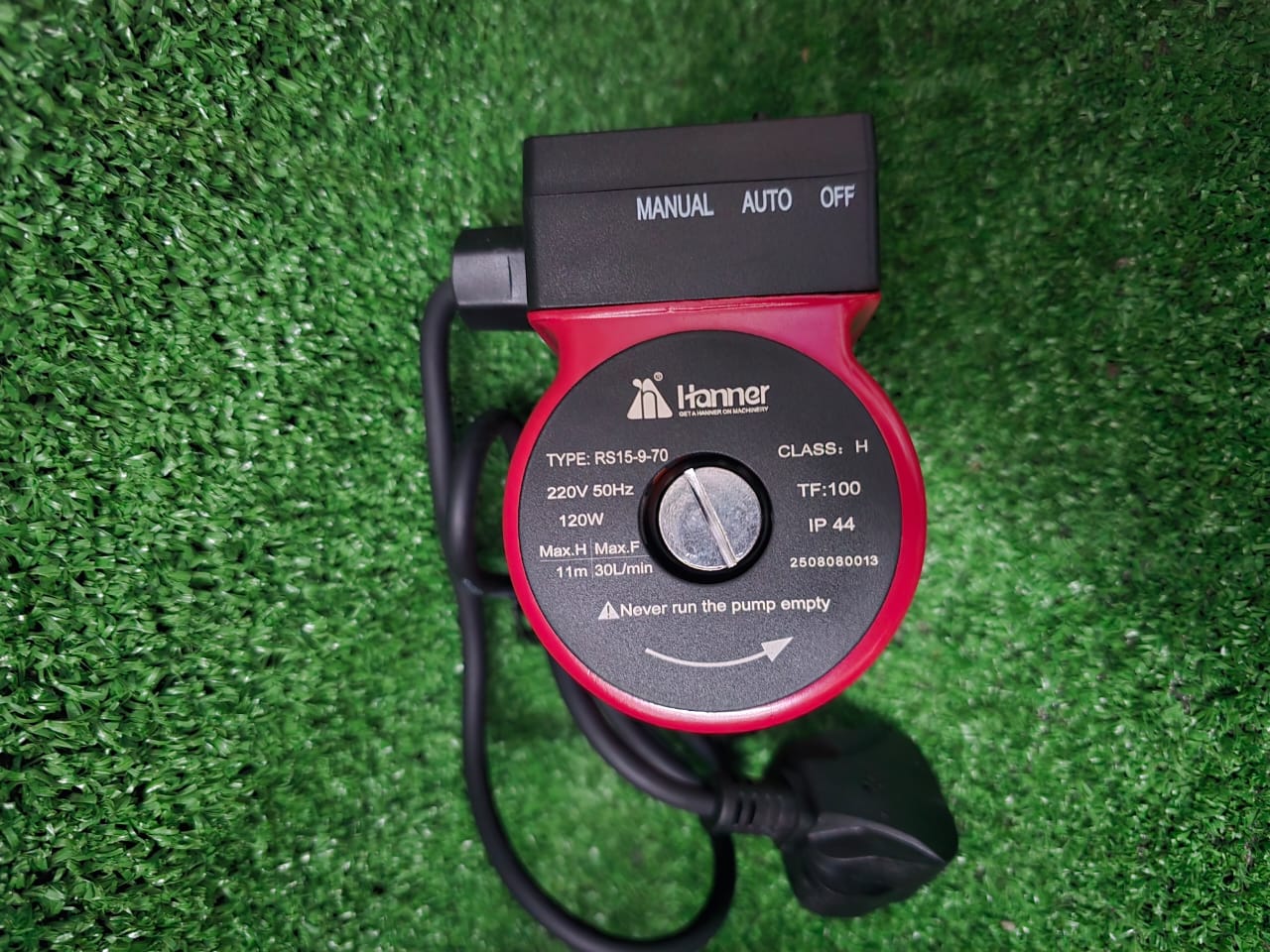

Hanner RS15-9-70 automatic circulation pump 120 watts is an automatic circulation and booster pump designed for hot water systems.
PRODUCT SPECIFICATIONS:
|
Model
|
RS15-9G
|
|
Rated Power
|
120W
|
|
Inlet/Outlet Diameter
|
NPT 3/4”
|
|
Max Flow
|
30L/min(8GPM)
|
|
Max Head
|
11m(36FT)
|
|
Volt/Freq
|
110-120V/60Hz
|
|
Pressure
|
1bar(14.5PSI)
|
|
Length of cable
|
1.25m(4.1FT)
|
|
Liquid temperature range
|
0 – 100℃(0-212℉)
|
|
Ambient temperature
|
not higher than 40℃(104℉)
|
|
Maximum working pressure
|
10bar(145PSI)
|
|
Motor
|
Protection class IP44 Insulation class F
|
|
Material
|
Cast Iron, PP, ceramics
|
|
Mounting position
|
Shaft horizontal mounting
|
- Most Kenyan homes uses hot solar water heater systems. The solar water heaters are usually installed on a raised ground, either on a roof or on a raised structure in order to harvest maximum sunshine.
- For water to flow into these water heaters/ boilers, they require a raised tank or an external pump to push the water into the water heater tank. At Multline Autosystems Ltd we understand that not all our customers have a raised tank, we therefore provide an automatic silent booster pump that not only boosts water to the solar water heater, but also boosts the presssure to the cold line to ensure maximum water pressure is achieved in the house.
HANNER AUTOMATIC CIRCULATION PUMP UNIQUE FEATURES
- It has an automatic run function with an inbuilt flow sensor
- Silent pump
- Low power consumption i.e less than 120 watts.
- Long service life
We offer same day delivery within Nairobi and next day delivery outside Nairobi.
