Description

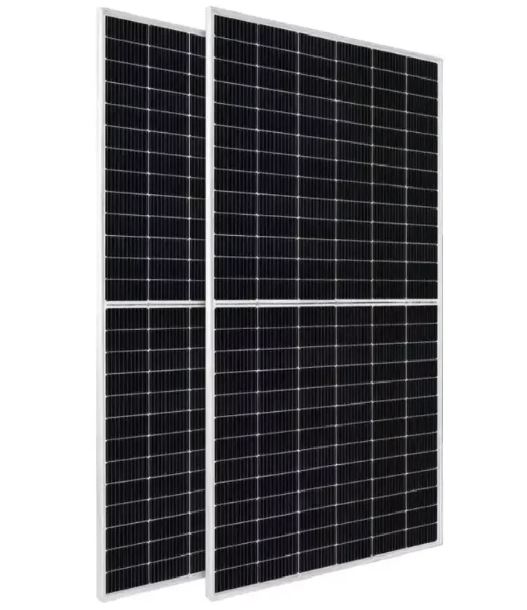

JINKO 585 WATTS bifacial solar panels JKM585M-72HL4-V uses the half-cut cells technology to enhance optimum solar power efficiency. Its an all weather solar panel with ability of generating power on both sides of the glass panel. Ideal for solar backup power generation, solar pumping etc.
GENERAL FEATURES
SMBB Technology
Better light trapping and current collection to improve module power output and reliability.
PID Resistance
Excellent Anti- PID performance guarantee via optimized mass-production process and materials control.
Enhanced Mechanical Load
Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).
Durability Against Extreme Environmental Conditions
High salt mist and ammonia resistance.
Hot 2.0 Technology
The N-type module with Hot 2.0 technology has better reliability and lower LID/LETID.
Enhanced Mechanical Load
Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).
| SPECIFICATIONS | ||||||||||
| Module Type | JKM565N-72HL4 JKM565N-72HL4-V | JKM570N-72HL4 JKM570N-72HL4-V | JKM575N-72HL4 JKM575N-72HL4-V | JKM580N-72HL4 JKM580N-72HL4-V | JKM585N-72HL4 JKM585N-72HL4-V | |||||
| STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | |
| Maximum Power (Pmax) | 565Wp | 425Wp | 570Wp | 429Wp | 575Wp | 432Wp | 580Wp | 436Wp | 585Wp | 440Wp |
| Maximum Power Voltage (Vmp) | 41.92V | 39.38V | 42.07V | 39.51V | 42.22V | 39.60V | 42.37V | 39.69V | 42.52V | 39.81V |
| Maximum Power Current (Imp) | 13.48A | 10.79A | 13.55A | 10.85A | 13.62A | 10.92A | 13.69A | 10.99A | 13.76A | 11.05A |
| Open-circuit Voltage (Voc) | 50.60V | 48.06V | 50.74V | 48.20V | 50.88V | 48.33V | 51.02V | 48.46V | 51.16V | 48.60V |
| Short-circuit Current (Isc) | 14.23A | 11.49A | 14.31A | 11.55A | 14.39A | 11.62A | 14.47A | 11.68A | 14.55A | 11.75A |
| Module Efficiency STC (%) | 21.87% | 22.07% | 22.26% | 22.45% | 22.65% | |||||
| Operating Temperature(℃) | -40℃~+85℃ | |||||||||
| Maximum system voltage | 1000/1500VDC (IEC) |
| Maximum series fuse rating | 25A |
| Power tolerance | 0~+3% |
| Temperature coefficients of Pmax | -0.29%/℃ |
| Temperature coefficients of Voc | -0.25%/℃ |
| Temperature coefficients of Isc | 0.045%/℃ |
| Nominal operating cell temperature (NOCT) | 45±2℃ |
