Description

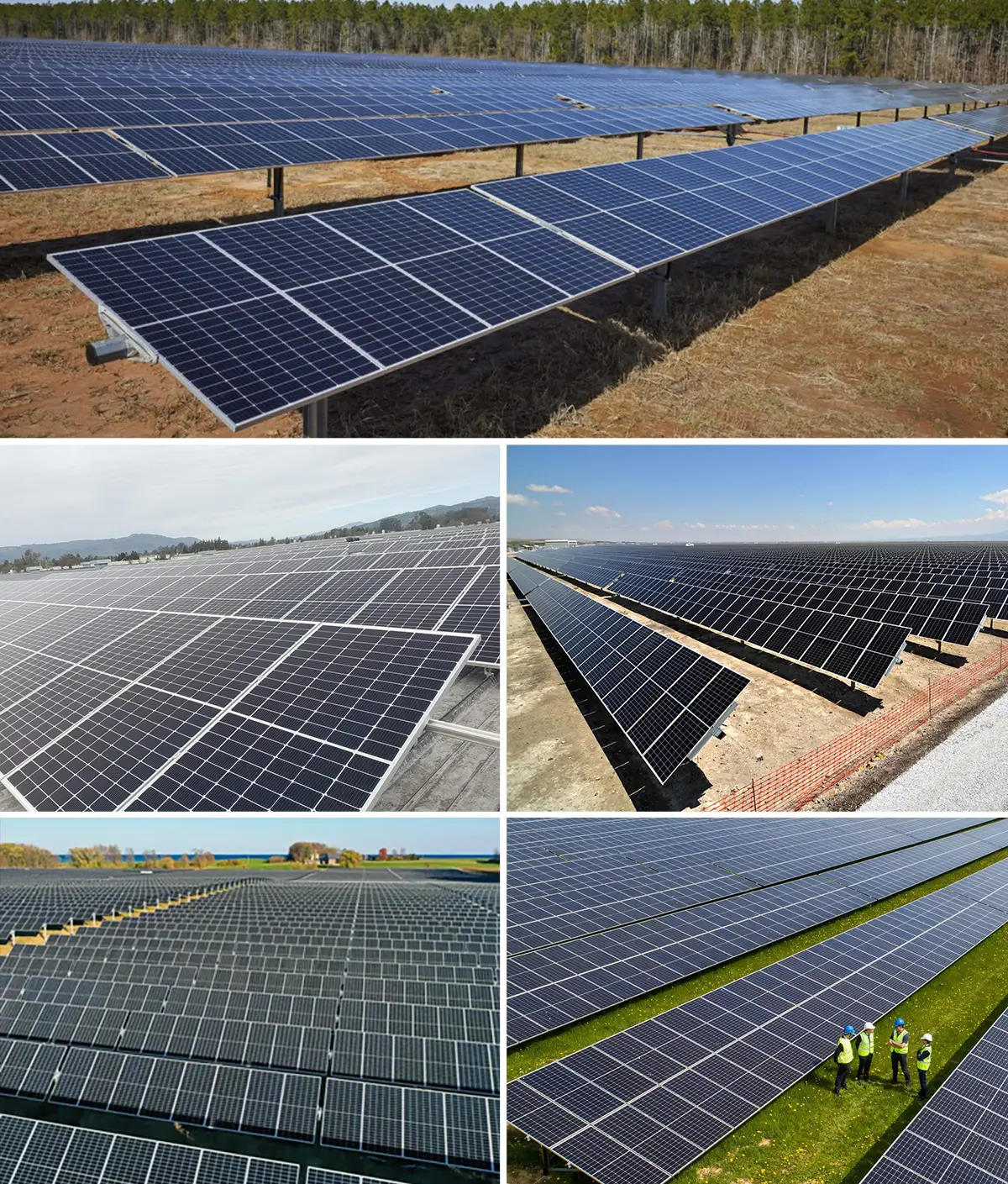

Jinko 715 bifacial solar panels (JKM710-735N-66HL5-BDV-Z3-EU) has a higher efficiency power output as compared to other solar modules. Its an all weather solar panel with ability of generating power on both sides of the glass panel. Ideal for solar backup power generation, solar pumping etc.
GENERAL FEATURES
SMBB Technology
Better light trapping and current collection to improve module power output and reliability.
PID Resistance
Excellent Anti- PID performance guarantee via optimized mass-production process and materials control.
Enhanced Mechanical Load
Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).
Durability Against Extreme Environmental Conditions
High salt mist and ammonia resistance.
- Get Jinko 715 watts in Kenya with best deals only at Multline Autosystems LTD.
715W rated power output – The highest in commercial bifacial panels
✔ 23.2% front-side conversion efficiency – Industry-leading performance
✔ 85% bifaciality factor – Exceptional rear-side energy generation
✔ -0.29%/°C temperature coefficient – Outstanding hot climate performance
✔ 35-year linear power warranty – The longest in the industry
Jinko Tiger Neon 700-715W Bifacial Double With Dual Glass Solar Panel
|
Model
|
|
|
Power
|
700W-715W
|
| Weight(kg) | 37.5kg |
| Dimensions(L*W*H)(mm) | 2384*1303*33mm |
|
Cell Type
|
N-type Mono-crystalline
|
|
No.of cells
|
132(66×2)
|
|
Dimensions
|
2384×1303×33 mm
|
|
Weight
|
37.5 kg
|
|
Front Glass
|
2.0 mm,Anti-Reflection Coating
|
|
Back Glass
|
2.0mm,Heat Strengthened Glass
|
|
Frame
|
Anodized Aluminium Alloy
|
|
Junction Box
|
IP68 Rated
|
|
Protection Class
|
Class Il
|
|
IEC Fire Type
|
Class C
|
|
Output Cables
|
4.0 mm²(+):400 mm,(-):200 mm or Customized Length
|
|
Jinko TiGER Neo BIFACIAL MODULE WITH DUAL GLASS JKM700-720N-66HL5-BDV
|
||||
|
Specifications(STC)
|
||||
|
Maximum Power-Pmax [Wp]
|
700
|
705
|
710
|
715
|
|
Maximum Power Voltage-Vmp [V]
|
40.42
|
40.53
|
40.65
|
40.77
|
|
Maximum Power Current-Imp [A]
|
17.32
|
17.40
|
17.47
|
17.54
|
|
Open-circuit Voltage-Voc [M
|
48.40
|
48.56
|
48.73
|
48.88
|
|
Short-circuit Current-Isc [A]
|
18.40
|
18.46
|
18.53
|
18.60
|
|
ModuleEfficiency STC [%]
|
22.54
|
22.70
|
22.86
|
23.02
|
|
Power Tolerance
|
0~+3%
|
|||
|
Temperature Coefficients of Pmax
|
-0.29 %/C
|
|||
|
Temperature Coefficients of Voc
|
-0.25 %/C
|
|||
|
TemperatureCoefficients of lsc
|
0.045%/℃
|
|||
|
STC:Irradiance 1000W/m²,Cell Temperature25℃,AM =1.5
|
||||
|
Specifications(BNPI)
|
||||
|
Maximum Power-Pmax [Wp]
|
773
|
779
|
784
|
790
|
|
Maximum Power Voltage-Vmp [V]
|
40.41
|
40.55
|
40.66
|
40.80
|
|
Maximum Power Current-Imp [A]
|
19.13
|
19.21
|
19.28
|
19.36
|
|
Open-circuit Voltage-Voc [M
|
48.47
|
48.59
|
48.72
|
48.85
|
|
Short-circuit Current-Isc [A]
|
20.33
|
20.40
|
20.48
|
20.55
|
|
BNPI:Iradiance:front 1000W/m²,rear 135W/m²,Cell Temperature 25℃,AM=1.5
|
||||
|
Application Conditions
|
||||
|
Operating lemperature
|
40℃~+70℃
|
|||
|
Maximum System Voltage
|
1500 VDC(IEC)
|
|||
|
Maximum Series Fuse Rating
|
35A
|
|||
|
Bifaciality Coefficent
|
φVoc:98±5%,φlsc:80±5%,φPmax:80±5%
|
|||
|

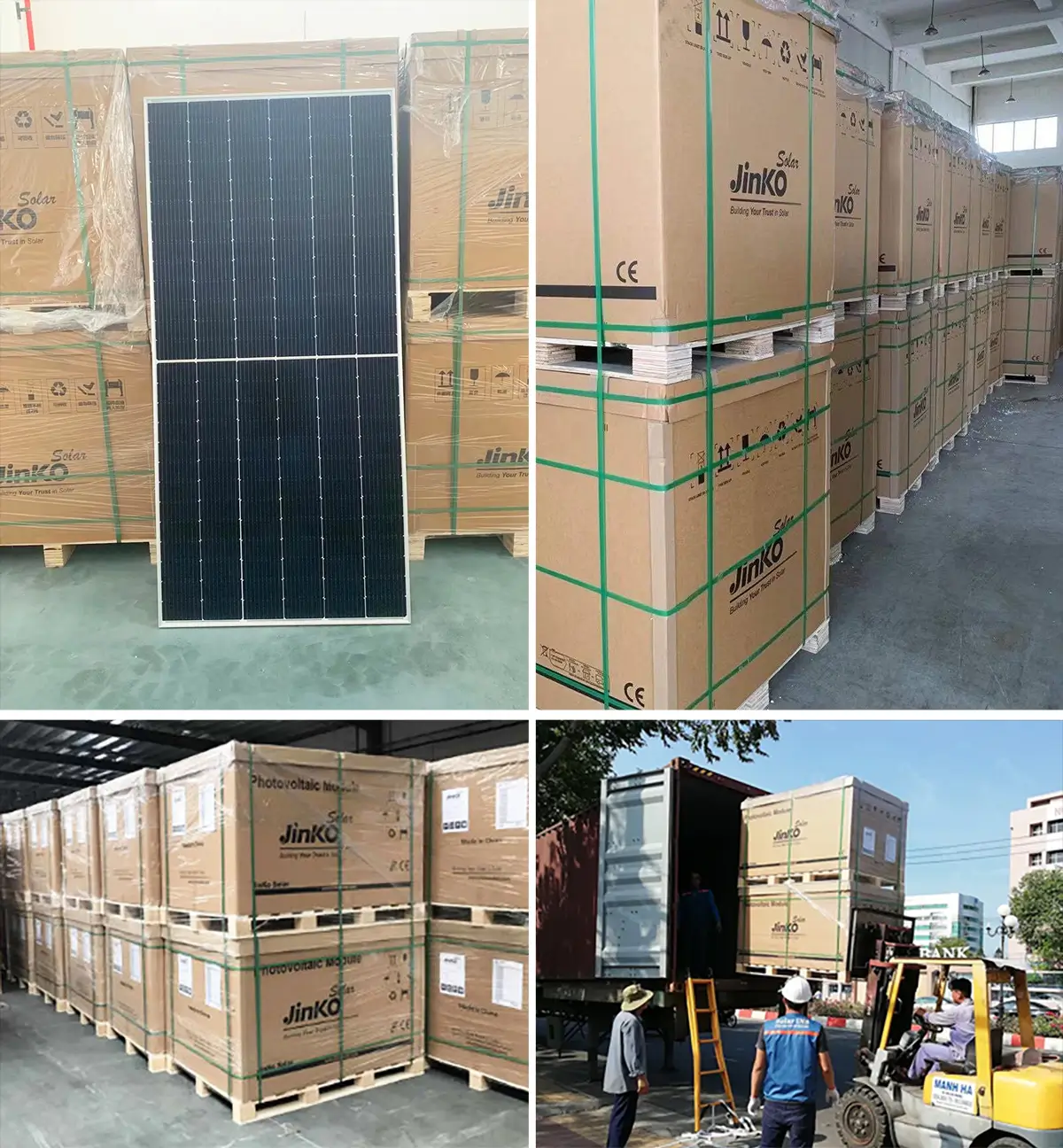

PACKAGE CONFIGURATION
|
|
|
Container
|
JKM695N-66HL5-BDV-JKM720N-66HL5-BDV
|
|
Pallet
|
33PCS
|
|
40’HQ
|
594PCS
|
