Description

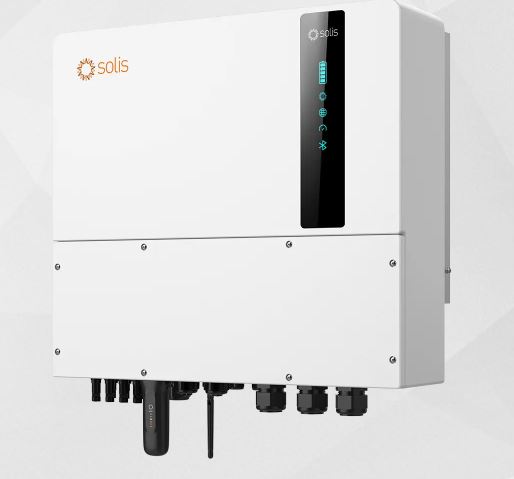

Solis 20Kw high voltage 3 phase hybrid inverter S6-EH3P20K-H-ND is a multifunctional hybrid inverter tailored for commercial PV energy storage systems. These products support an independent generator port and the parallel operation of multiple inverters. With 4 MPPTs and a 40A/MPPT input current capacity, they maximize the advantages of rooftop PV power. These products also offer independent generator ports, high current charging and discharging capacity, and various flexible load capacity options, including UPS-level switching. They readily adapt to three-phase unbalanced loads and half-wave loads, ensuring a highly reliable energy supply.
Solis 20Kw hybrid solar inverter is IP 66 protected from rain and sunshine.
The Solis S6-EH3P20K-H-ND series three-phase energy storage inverter unique features include:
- Compatible with 100-280Ah battery modules
- Supports faster charging with battery current up to 50A
- Powerful backup overload capability – 160% overload
- Supports 2 independent battery connections for flexible configuration
- Supports a wide power range of generator connections from 10kVA to 50kVA
- Supports max 20A PV input current, perfect match for high power PV modules
- Usable PV power up to 200% inverter rated power, to improve the utilization of PV generation
Leading features include
- Seamless on grid/off grid switching time <10ms
- Supports battery reserve function in multiple scenarios
- Smart Load Prioritizing – Extending support for critical loads
- Supports flexible PV connection through DC and AC coupling for retrofitting and expanding
- Support max 10 pcs in parallel mode, >6 pcs recommend Solis power distribution cabinet
- SmartLoad/GEN/INV port – Flexible connection of multiple energy sources such as Grid-tied inverter, diesel generator, wind turbines, etc.
- 4 MPPTs, 8 strings at 20A, and up to 32kW usable PV input
- Supports 1.6 times rated output for 2 seconds on the backup port
- Supports parallel operation of up to 6 units for on and off-grid use
- Operates as a grid-tied inverter without batteries when on-grid
- Multi-input generator connectivity with automatic on/off control
- Supports peak shaving control in both “self-use” and “generator” mode
