Description

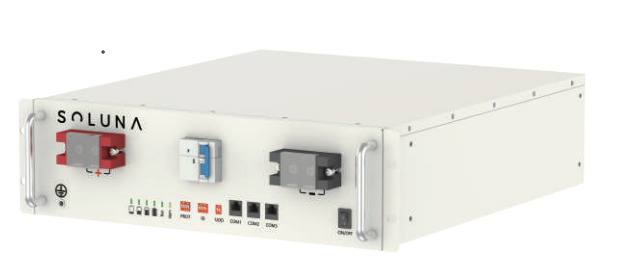

Soluna 5.12Kwh 51.2V Lithium ion battery EVO 5K Pack is a LiFePO4 lithium battery product with BMS (battery management system). It is a battery module with CAN / RS485 communication,under-voltage, over-voltage, over-current, over-temperature, under-temperature protection functions. It has the characteristics of high energy density,long life, safety, wireless monitoring, and so on, and is your trustworthy green environmental product.
This battery is a high-performance lithium battery system crafted to support modern solar installations. It uses Lithium Iron Phosphate (LiFePO4) chemistry for enhanced safety, thermal stability, and longer life cycles – delivering more than 6000 cycles at 80% depth of discharge.
With IP 30 protection, the Soluna EVO 5K Pack is suitable for outdoor setups. Its modular and stackable design allows scalability as your energy needs grow, making it a versatile solution for residential and small commercial backup systems in Pakistan.
This battery is fully compatible with leading hybrid and off-grid inverters and includes CAN/RS485 communication ports for intelligent energy management and remote monitoring. Compatible with most inverters including Goodwe, Deye, Growatt, Solis, just to mention afew.
Why Choose Soluna EVO 5K Pack 100Ah Lithium Battery?
Soluna is a reputable name in energy storage, offering efficient and safe lithium solutions for solar homes. The 5K Pack combines compact design, durability, and high performance with user-friendly integration.
Available at Multline Autosystems LTD – Trusted Lithium Battery Provider in Kenya
At Multline Autosystems LTD, we provide original Soluna lithium batteries with installation support, hybrid inverter compatibility, and solar energy consultation services.
Why Buy from US?
100% Genuine Soluna Lithium Batteries Competitive Market Pricing Smart Solar Storage Consultation Reliable After-Sales & Warranty Support
Order Soluna EVO 5K Pack 100Ah Lithium Battery Today!
Buy Soluna EVO 5K Pack 100Ah Lithium Battery with IP66 protection, LFP safety, and 5-years warranty. Smart storage for hybrid & off-grid solar systems.
| Nominal Ah capactity(0.5C) | 100 |
| Nominal Wh energy (0.5C) | 5120 |
| Nominal voltage(Vdc) | 51.2 |
| Max.Charge Voltage(Vdc) | 56.8 |
| Suggested Low Voltage Cutoff (Vdc) | 48 |
| Nominal charge & discharge current (Adc) | 50 |
| Max. Continuous Charge Current (Adc) | 75 |
| Max. Continuous Discharge Current (Adc) | 100 |
| Max Peak Current (Adc) | 200 |
| Max Continuous Discharge Rate (kW) | 5.12 |
| Recommend DOD | 80% |
| Maximum DOD | 90% |
| Self-Discharge (25°C) | 3% per month |
| Operating Temperature(°C) | -20~+50
With heater pad |
|
Storage Temperature(°C) |
-20 to 35 up to
6 months |
| > 35 less than
1 month |
DIMENSIONS:
| Industry Reference | 19 Inch Rackmount 3U |
| Width (mm) | 442 |
| Depth (mm) | 498 |
| Height (mm) | 132.5 |
| Weight (kg) | 43.5 |
| Cell(s) | 16S1P |
| Chemistry | LiFePO4 |
TECHNICAL FEATURES:
- Excellent safety performance（multiple layers of protection）
- Long cycle life
- Support for CAN / RS485-communication
- Scale up to 160 battery units in parallel
- Integrated 360W heating pad inside, which allows users to charge and discharge under cold weather conditions.
- Remote monitoring, debugging,firmware updates
- Enhanced safety-DC breaker integrated, automatic release device for battery output
- Over temperature, over current, over discharge, over charge and short circuit protection etc.
