Description

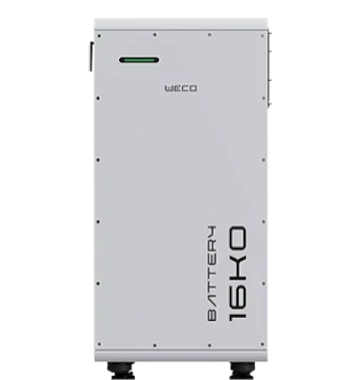

Weco 16Kwh 51.2V LV Lithium ion battery 16KO-LV is a high-capacity 16kWh lithium battery designed for residential, commercial, and off-grid energy storage systems using low-voltage inverter architectures.
It integrates a smart Battery Management System (BMS) that protects, balances, and optimizes battery performance while enabling reliable long-term operation with over 8000 charge cycles.
The battery features a robust IP66-rated enclosure and integrated fire suppression system, ensuring high safety and durability even in demanding installation environments.
With modular expansion supporting up to 28 parallel units, the 16KO-LV enables scalable energy storage solutions for small residential installations to large hybrid power systems.
TECHNICAL SPECIFICATIONS
|
BATTERY |
Maximum capacity of the storage system | 16.3 kWh |
| Battery system capacity | 16.06 kWh | |
| Rated voltage of the individual module | 51.2 Vdc | |
| Maximum depth of discharge | Up to 98% | |
|
SYSTEM |
Modules expandability | 105 con LV HUB |
| Input protection | IP66 | |
| Voltage range | 46.5 ~ 56.8 Vdc | |
| Net capacity | 314Ah | |
| COMUNICATION | Communication interface | RS485, CAN, RS232, Wi-Fi & Bluetooth (con
dispositivo esterno) |
|
BASIC PARAMETERS |
Dimensions (W x D x H) (mm) | 480 × 1000 × 262 |
| Weight | 84 kg | |
| Max. Charge/discharge current | 320 A DC | |
| Standard charge/discharge current | 155Adc | |
| Discharge temperature | -20 ~ +60 °C * | |
| Charge temperature | -5 ~ +55 °C * | |
| Standard temperature range | 25 °C ± 10°C | |
| Humidity | 5 % ~ 95 % no condensation | |
| Altitude | < 3000 m | |
| Expected life cycle @ STC | > 8000 (25°C 80% DoD) | |
| Standard | CB / IEC62368-1 / IEC62619 / CE /EMC / UN38.3 | |
|
Safety features |
CAN discharge logic, 3-step adaptive charging logic 2 x programmable DI / DO
Optional device for remote monitoring and control with WeCo App for Android / iOS Pre-Charge + Contactor Protection Three levels of protection, real-time balancing, adaptive charging |
*The above temperatures are limited to BMS ranges, such values may not be covered by the performance warranty.
MORE FEATURES
SEISMIC PROOF
STRUCTURE
The battery exhibits exceptional resilience to seismic activity, ensuring uninterrupted power supply and system reliability during
earthquakes
POWER AND MODULAR CAPACITY
16K0 can support up to 105 modules in parallel for unprecedented capacity
- Plug and Play Expansion with Master Controller
- Up to 105 modules per cluster
- Expand capacity later
- Plug & Play configuration
ALWAYS BALANCED CLUSTER
Automatic balancing control logic
EASY EXPANDABILITY AT ANY TIME
16K0-LV
LITHIUM ENERGY STORAGE SYSTEM
The next generation of batteries has arrived: it’s called WeCo.
FEATURES
QUICK INSTALLATION
Easy installation with Plug & Play self-configuration.
SEISMIC PROOF STRUCTURE
uninterrupted power supply and system reliability during earthquakes
EXPANSION MODULE
support up to 105 modules in parallel for unprecedented capacity
