Description

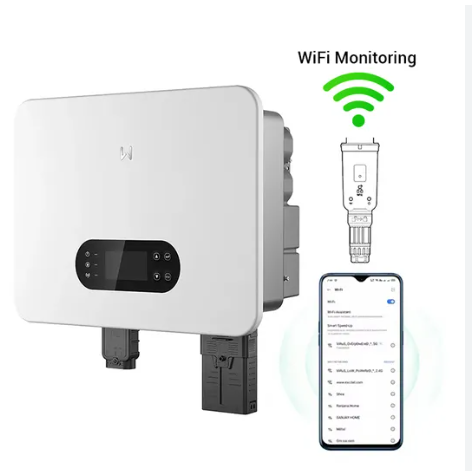

Goodwe 12Kva 48V single phase inverter GW 12K-ES-C10 is a high-performance single–phase inverter designed for residential and small commercial solar systems. Engineered to seamlessly integrate with battery storage, it supports energy independence by maximizing solar energy usage and offering reliable backup during outages. With its smart design, multiple MPPTs, and advanced communication interfaces, this inverter ensures maximum efficiency, safety, and ease of operation in low-voltage environments.
GoodWe 12 kW Hybrid Inverter Key Features:
-
12 kW Rated Power – Ideal for medium to large solar energy systems.
-
Low Voltage Battery Compatibility – Ensures broader system integration.
-
Three-Phase Output – Balanced power distribution for enhanced stability.
-
Dual MPPT Inputs – Optimal energy harvest from different roof orientations.
-
Smart Energy Management – Compatible with GoodWe monitoring platforms.
-
Backup Power Support – Reliable power supply during grid outages.
-
High Conversion Efficiency – Up to 98.2% for superior performance.
GoodWe 12 kW Hybrid Inverter Technical Data:
| Parameter | Specification |
|---|---|
| Model | GW12K-ES-C10 (Hybrid) |
| Rated AC Power Output | 12,000 W |
| Solar Voltage Range | 60V – 550V |
| Phases | 1-phase |
| MPPTs | 2 |
| Max PV Input Power | 24,000 W |
| Max Efficiency | 98.2% |
| Communication | RS485, Wi-Fi, CAN |
| Application | Residential & Light Commercial |
| Backup Function | Yes (with fast switchover) |
| Warranty | 5 years (extendable) |
| 12kW AC Output |
24kW Solar Input |
250A Battery Current |
24kVA Peak (10s) |
vdvdvdffvdfcvvvv
|
Goodwe 12Kw single phase datasheet
