Description
SRNE 2.5Kwh 200AH 12V Lithium ion battery has a wide range of application for domestic and office power setup. This battery is compatible with quite a number of 12V inverter including Must 1.5kw 12V inverter, Amizar 1.5Kva kw 12V inverter, SRNE 1Kva 12V hybrid inverter, Snadi, just to mention a few.

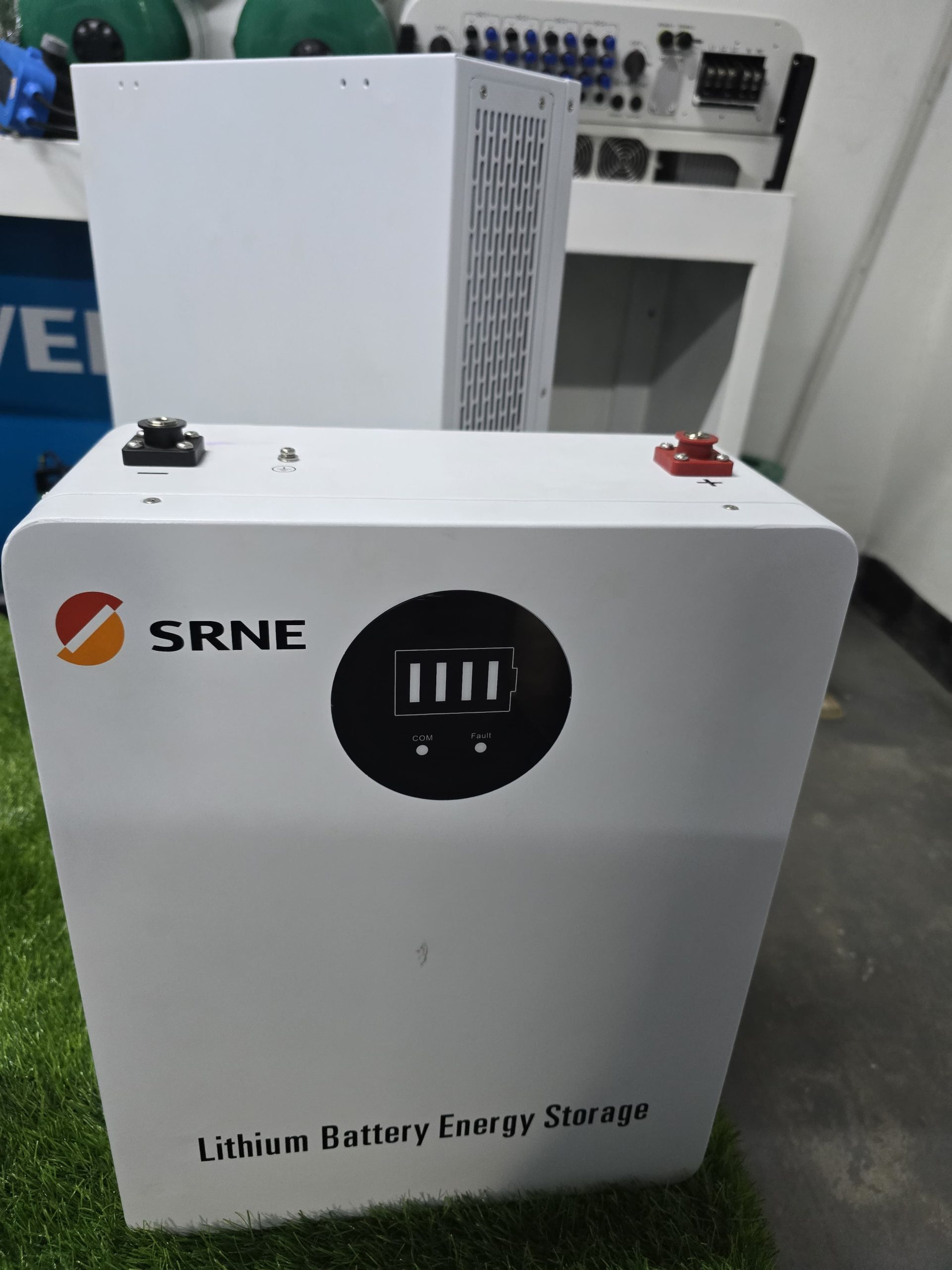

This battery has an inbuilt BMS system (Battery management system) to fully manage the lithium phosphate cells. It has a battery level display whereby unlike other 12V lithium batteries, one is able to monitor the remaining battery capacity and the used battery level just by checking the battery display bars.
With a 5 yrs warranty and up to 16 years of service life, you are assured of un interrupted power supply and less reliability on electricity which in return saves on electricity bills and helps preserve the environment.
This battery replaces the conventional GEL and LEAD acid batteries by offering better depth of discharge i.e upto 80% DOD and better service life i.e UPTO 16 years.
Main Features
- Cell Cycle Times: 6,000 cycles (+25℃ 0.2C 80% DOD)
- Long Lifespan: 5 years warranty, 10 years life design
- Easy Installation: Adopted wall-mounted design saving floor space
- Built-in smart BMS system to optimize the performance
- Communucation: RS485/SNMP/WIFI/Bluetooth, compatible with different brand of solar inverter and chargers
- Nominal Voltage range: 12V
- Battery capacity: 200AH
- Voltage range: 11.2V -14.4VDC
- Maximum charging current-120A
- Maximum discharge current-120A
- Peak discharge current-150A (3S)
- Peake charging current-150A (3S)
- Weight 23KG
- Dimensions-420*330*148mm
- DOD-80%
- Protection rating-IP30
